Boron carbide nozzle for sandblast , straight bore nozzles mould available

Name: Boron carbide nozzle for sandblast straight bore nozzles mould available
Brand: OEM/High Broad
Price: 1 USD

Best Boron carbide nozzle for sandblast , straight bore nozzles mould available wholesale

Brand Name : OEM/High Broad

Model Number : Hotpress B4C Nozzle ceramic sandblast nozzle

Certification : ISO, DNV,BV

Place of Origin : China

MOQ : 10 pieces

Price : negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram,PayPal

Supply Ability : 1000 pieces per month

Delivery Time : 500 pieces:15 Days

Packaging Details : Each nozzle packed in a plastic tube, then in a carton

Name : Hotpress Sandblasting Boron carbide spray nozzle for cleaning equipment

Keyword : sandblast venturi nozzle double inlet venturi nozzle for chemical industry

Advantage : High temperature resistance, Abrasion-resistance, light unit weight, working life much longer than tradition material

Material : B4C SIC ceramic sandblast nozzle

Shape : Straight Core,Ventui Type Venturi Sandblasting Boron Carbide Nozzles

Usage : Sandblasting machines, hydraulic cutters, power plant boilers

Thread : Coarse thread, thin thead, fine thread

Rubber jacket : Coarse thread long venturi boron carbide rubber jacket sand blast nozzles

Boron carbide abrasives nozzles : Manufacturing Blast Nozzle Boron Carbide Nozzle

Contact Now

Boron carbide nozzle for sandblast , straight bore nozzles mould available

Boron carbide nozzle straight bore nozzles all boron carbide nozzle mould available boron carbide nozzle for sandblasting

High temperature resistance, Abrasion-resistance, light unit weight, working life much longer than tradition material.

Regular size list for straight core

Diameter(mm)	Diameter (mm)	Length(mm)
20	4	45
20	6	45
20	8	45
20	10	45

Diameter(mm)	Diameter (mm)	Length(mm)
20	6	60
20	8	60
20	10	60

Diameter(mm)	Diameter (mm)	Length(mm)
20	6	80
20	8	80
20	10	80

Diameter(mm)	Diameter (mm)	Length(mm)
21	8	82
21	10	82
21	12	82

Other sizes:

Diameter(mm)	Diameter (mm)	Length(mm)
15	6	55
15	8	55
25	8	60
25	10	60
25	12	60
30	8	40
30	10	40
30	12	40
30	14	40

Venturi type:

Coarse thread and Fine thread

Boron carbide nozzle insert with Aluminum or stainless steel jacket

Entrance width	Entrance depth	Bore	Exit	Length
32	40	6.5	10.5	135
32	45	8.0	12.0	150
32	48	95.	14.0	165
32	52	11.0	15.5	190
32	58	12.5	17.0	215
Entrance width	Entrance depth	Bore	Exit	Length
25	28	6.5	10.5	135
25	35	8.0	12.0	150
25	38	95.	14.0	165
25	42	11.0	15.5	190
25	42	12.5	17.0	215

(mm)

Density: 2.40-2.65 g/cm3

Elastic modulus: 510 Gpa

Knoop Hardness: 3300

Flexural strength: 400-650 Mpa

Compressive strength: 4100 Mpa

Fracture toughness: 4.5-7.0 Mpa.m1/2

Coefficient of thermal expansion: 4.5x106

Thermal Conductivity: 29 m0k

Maximum permissible service temperature in air: 1500℃

Material Comparation Chart:

Item	Al2O3	SiC	B4C
Density	3.5g/cm3	3.1g/cm3	2.4-2.65g/cm3
Hardness	HV1650	HV2750	HV3300
Flexural strength	290 Mpa	380 Mpa	400-650 Mpa
Compressive strength	850 Mpa	3970 Mpa	4100 Mpa
Fracture toughness	4.8 Mpa.m1/2	4.0 Mpa.m1/2	4.5-7.0 Mpa.m1/2
Thermal Conductivity	20 m0k	120m0k	29 m0k

Company Principle:

Our Belief: Continuous Innovation.

Our Spirit: Sincerity, Unity, Dedicated, Hardworking.

Our Mission: Provide most advanced products & most professional technical solution.

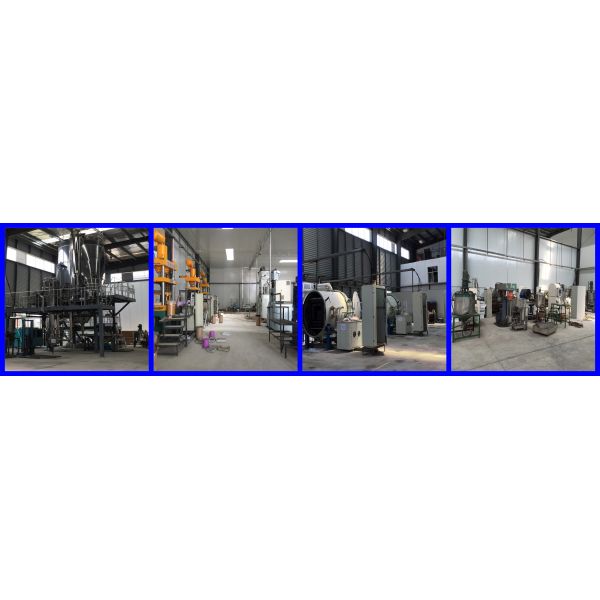

Office, Workshop, Inspection Lab:

product show:

Boron carbide nozzle for sandblast , straight bore nozzles mould available
